Tm121tdsg02 Lvds Interface LCD Screen TFT 12.1 Inch LCD Panel 450cd/M2 Highlight

Ask Lasest Price
Brand Name :	TIANMA
Model Number :	TM121TDSG02
Price :	Negotiable
Payment Terms :	T/T, Western Union
Supply Ability :	100000 Unit/Units per Month
Delivery Time :	7 Days

Add to Cart

Product Details
Company Profile

Tm121tdsg02 Lvds Interface LCD Screen TFT 12.1 Inch LCD Panel 450cd/M2 Highlight

**Highlight 450 Lvds Interfacetm121tdsg02 Tft 12.1inch 1024*768 Lcd Display Screen**

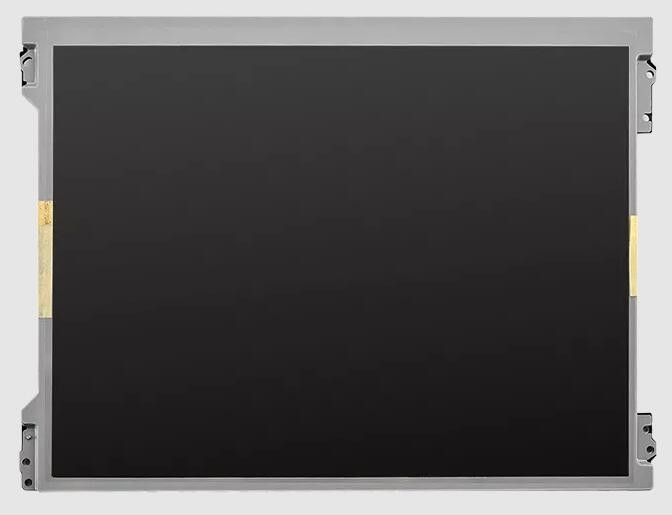

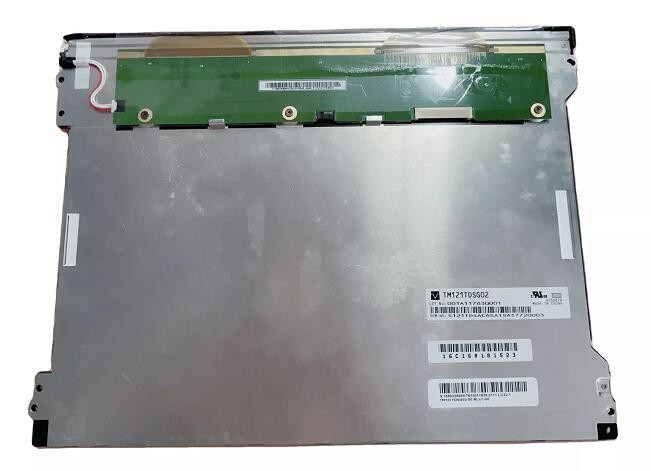

TM121TDSG02 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 245.76(W)×184.32(H) mm, outline size of 279(W)×209(H)×9.1(D) mm, viewing area size of 250.8(W)×189.4(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 483g (Typ.). As a TN, Normally White, Transmissive LCM product, TM121TDSG02 can provides 450 cd/m² display brightness 700:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 3/5 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 55% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. TM121TDSG02 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

12.1 inch tft lcd display product details

item	value
Type	TFT
Display Size	12.1 inch tft lcd panel
Supplier Type	Chinese suppliers
Brand Name	TIANMA
Resolution	1024*768
Brightness	450 cd/m² (Typ.)
Viewing Angle	80/80/80/80 (Typ.)(CR≥10)
Panel Type	A-Si TFT-LCD Panel
Backlight	WLED
Interface Type	LVDS (1 ch, 6/8-bit) , 20 pins
Operating Temperature	-20 ~ 70 °C
Touch panel	Non-touch
Application	Industrial Application

12.1 inch tft lcd screen features

The panel parameters displayed on this web page are entered by the electronic engineer of the company according to the specifications. Efforts have been made to reduce the errors, but the parameters are not fully correct. Please refer to the specifications!

Tm121tdsg02 Lvds Interface LCD Screen TFT 12.1 Inch LCD Panel 450cd/M2 Highlight

faq

1.Q: Which sizes is available for the LCD Display in your factory?
A: Normally, we supply3.5“4.3”5“5.6” 7'' 8''9“ 10.1'' 10.2'' 13.3'' 14'' 15.6'' 18.5'' 21.5'' 23.6'' 24'' 27'' 32'' 43'' 49'' 55'' 65''. If customers need others size, we also supply such as 75'' 86''.

2.Q: Is the lcd display can make touch screen?
A: Yes, normally we have 3 kinds of touch for options, IR touch, capacitive touch and resistive touch.

3.Q: If the customized do you support?
A: Yes, we can do OEM and ODM. We can provide other accessories such as touch panel, control board, etc. of different sizes and types according to customers' requirements.

4.Q: How long is the delivery time?
A: Normally about 5-15 working days for standard version. If customized product, need about 15-20 working days.

5.Q:How about the warranty?
A: We supply one year warranty.

6.Q: What is the MOQ?
A: We supply 1pcs MOQ for testing and qualification.

7.Q: What package do you have?
A: Different kinds of package for options: Wooden case, Honey comb case, and Flight case.

If you need product details, please contact RISING-SUN.
