    At070tn83 800x480 Innolux 7 Inch Touch TFT LCD T Con Board 800x480

    Ask Lasest Price
    Brand Name : Innolux
    Model Number : AT070TN83
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 100000 Unit/Units per Month
    Delivery Time : 7 Days
    • Product Details
    • Company Profile

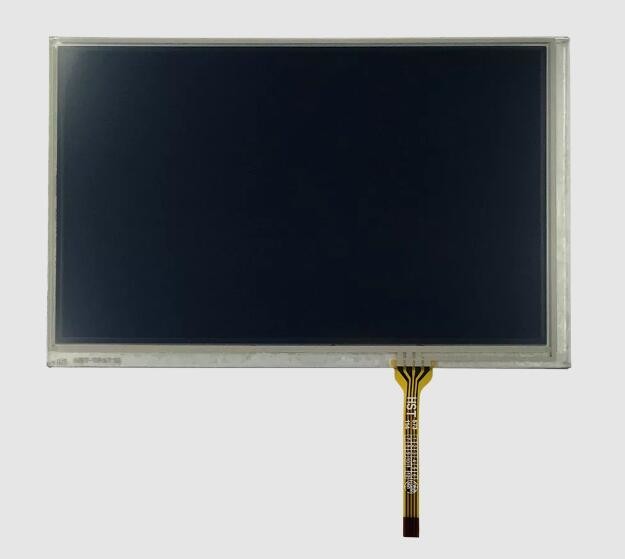

    At070tn83 800x480 Innolux 7 Inch Touch TFT LCD T Con Board 800x480

    7 Inch Innolux At070tn83 Touch Tft Lcd Display 800x480 With Touch Panel And T-Con


    The AT070TN83 is a 7.0 inch diagonal a-Si TFT-LCD display panel product from Innolux , with an integral WLED backlight system, without backlight driver, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are summarized by Panelook in the following: WLED Backlight, Matte . Based on its features, Panelook recommend that this model be applied to Digital Photo Frame, Portable DVD Player, MP3 PMP etc.


    product details


    Size7.0 inch
    Typea-Si TFT-LCD, LCM
    Pixel800(RGB)×480 [WVGA] 133PPI
    ConfigurationRGB Vertical Stripe
    Active Area152.4(H)×91.44(V) mm
    Outline size

    165(H)×104(V) ×5.8(D) mm

    Bezel Area155.3(H)×94.3(V) mm
    TreatmentAntiglare
    Luminance300 cd/m² (Typ.)
    Contrast Ratio500:1 (Typ.) (TM)
    View Direction6 o'clock
    Response Time10/15 (Typ.)(Tr/Td)
    Viewing Angle70/70/50/70 (Typ.)(CR≥10)
    Operating ModeTN, Normally White, Transmissive
    Support Color262K
    Light SourceWLED , 20K hours , With LED Driver
    Weight130g (Typ.)
    Frame Rate60Hz
    Touch PanelAT070TN83 V.1 + TP

    Interface Type

    TTL (1 ch, 6-bit) , 40 pins Connector

    Power Supply

    3.3V

    Environment

    Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C

    features


    The panel parameters displayed on this web page are entered by the electronic engineer of the company according to the specifications. Efforts have been made to reduce the errors, but the parameters are not fully correct. Please refer to the specifications!

    At070tn83 800x480 Innolux 7 Inch Touch TFT LCD T Con Board 800x480

    faq


    1.Q: Which sizes is available for the LCD Display in your factory?
    A: Normally, we supply3.5“4.3”5“5.6” 7'' 8''9“ 10.1'' 10.2'' 13.3'' 14'' 15.6'' 18.5'' 21.5'' 23.6'' 24'' 27'' 32'' 43'' 49'' 55'' 65''. If customers need others size, we also supply such as 75'' 86''.


    2.Q: Is the lcd display can make touch screen?
    A: Yes, normally we have 3 kinds of touch for options, IR touch, capacitive touch and resistive touch.


    3.Q: If the customized do you support?
    A: Yes, we can do OEM and ODM. We can provide other accessories such as touch panel, control board, etc. of different sizes and types according to customers' requirements.


    4.Q: How long is the delivery time?
    A: Normally about 5-15 working days for standard version. If customized product, need about 15-20 working days.


    5.Q:How about the warranty?
    A: We supply one year warranty.


    6.Q: What is the MOQ?
    A: We supply 1pcs MOQ for testing and qualification.


    7.Q: What package do you have?
    A: Different kinds of package for options: Wooden case, Honey comb case, and Flight case.
