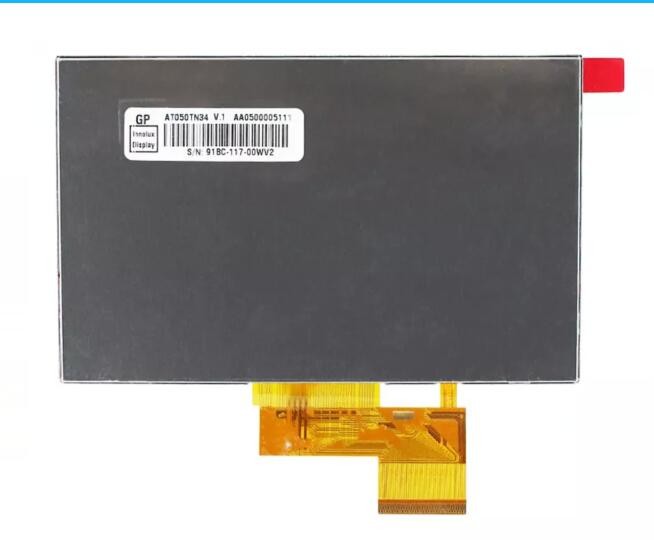

5 inch 480x272 Innolux AT050TN34 V.1 Brightness 400 RGB 67 Pins FPC
interface LCD display module for Medical sc
AT050TN34 V.1 is a 5.0" diagonal a-Si TFT-LCD display panel product
from Innolux Corporation (hereafter called Innolux), with an
integral WLED backlight system, without backlight driver,
touchscreen 4-wire Resistive Touch, F/G. It features an operating
temperature range of -20 ~ 70°C , a storage temperature range of
-30 ~ 85°C . It's general features are summarized by Panelook in
the following: With Touch, WLED Backlight, Matte , 3 in 1 FPC.
Based on its features, Panelook recommend that this model be
applied to Portable Navigation, MP3 PMP etc.
product details
| Module number | AT050TN34 V.1 |
| Resolution | 480(RGB)×272 (WQVGA) 109PPI |
Bezel Area(mm) | 113.90 × 65.85 (H×V) |
| Active Area | 110.88 × 62.832 (H×V) |
| View angle | 70/70/50/70 |
Arrangement | RGB Vertical Stripe |
| Treatment | Antiglare, Hard coating (3H) |
| Electrical Interface | Parallel RGB |
| Brightness | 400(cd/m2) |
| Contrast ratio | 500:1 |
| Outline dimension | 120.7 × 75.8 × 4.45 (H×V×D) |
| Backlight | 6S2P WLED , 20K hours , No Driver |
Good View at | 6 o'clock |
| Display mode | TN, Normally White, Transmissive |
Voltage Supply | 1.8/3.3V (Typ.)(DVDD/AVDD) |
| Display Colors | 16.7M |
Max. Ratings | Storage Temp.: -30 ~ 85 °C Operating Temp.: -20 ~ 70 °C |
Touchscreen | 4-wire Resistive Touch, F/G |
Signal Type | Parallel RGB (1 ch, 8-bit) , 67 pins FPC |
features
This model is suitable for electronic instrumentation,Handheld
terminal, on-board display, video phone, MP3, PMP.
The panel parameters displayed on this web page are entered by the
electronic engineer of the company according to the specifications.
Efforts have been made to reduce the errors, but the parameters are
not fully correct. Please refer to the specifications!
faq
1.Q: Which sizes is available for the LCD Display in your factory?
A: Normally, we supply3.5“4.3”5“5.6” 7'' 8''9“ 10.1'' 10.2'' 13.3''
14'' 15.6'' 18.5'' 21.5'' 23.6'' 24'' 27'' 32'' 43'' 49'' 55''
65''. If customers need others size, we also supply such as 75''
86''.
2.Q: Is the lcd display can make touch screen?
A: Yes, normally we have 3 kinds of touch for options, IR touch,
capacitive touch and resistive touch.
3.Q: If the customized do you support?
A: Yes, we can do OEM and ODM. We can provide other accessories
such as touch panel, control board, etc. of different sizes and
types according to customers' requirements.
4.Q: How long is the delivery time?
A: Normally about 5-15 working days for standard version. If
customized product, need about 15-20 working days.
5.Q:How about the warranty?
A: We supply one year warranty.
6.Q: What is the MOQ?
A: We supply 1pcs MOQ for testing and qualification.
7.Q: What package do you have?
A: Different kinds of package for options: Wooden case, Honey comb
case, and Flight case.
