5.6 Inch 640x480 Vga Innolux Tft Lcd Panel Industry At056tn52 V.3 Touch Screen Driver Board

AT056TN52 V.3 is a 5.6-inch LCD module using a-Si TFT-LCD technology from Innolux. It is equipped with WLED backlight, no backlight drive, no touch, display resolution of 640 (RGB) ×480 (VGA), width ratio of 4:3 (width: high), and pixels are arranged in RGB vertical strip. Its display area size is 112.896×84.672 (width and height) mm, the visual size is 115.70×87.47 (width and height) mm, the appearance size is 126.5×100 (width and height) 6 (thick) mm, the surface treatment is fog surface, the product net weight is 127.5g (Typ.). Using a Parallel RGB (1 ch, 8-bit) signal interface, a total of 50 pins, an FPC connection, and a drive screen voltage of 3.3/5.0/15/-10V (Typ.) (VCC / AVDD / VGH / VGL). It operates at temperatures of-20-70 C and has storage temperatures of-30-80 C.

product details

features

This model is recommended for medical instruments, electronic instruments,Handheld terminal,digital picture frames, video doorbell, and video telephones.


The panel parameters displayed on this web page are entered by the electronic engineer of the company according to the specification. Efforts and efforts have been made to reduce errors, but the parameters are not fully correct. Please refer to the specifications!







faq



1.Q: Which sizes is available for the LCD Display in your factory?
A: Normally, we supply3.5“4.3”5“5.6” 7'' 8''9“ 10.1'' 10.2'' 13.3'' 14'' 15.6'' 18.5'' 21.5'' 23.6'' 24'' 27'' 32'' 43'' 49'' 55'' 65''. If customers need others size, we also supply such as 75'' 86''.



2.Q: Is the lcd display can make touch screen?
A: Yes, normally we have 3 kinds of touch for options, IR touch, capacitive touch and resistive touch.



3.Q: If the customized do you support?
A: Yes, we can do OEM and ODM. We can provide other accessories such as touch panel, control board, etc. of different sizes and types according to customers' requirements.



4.Q: How long is the delivery time?
A: Normally about 5-15 working days for standard version. If customized product, need about 15-20 working days.



5.Q:How about the warranty?
A: We supply one year warranty.



6.Q: What is the MOQ?
A: We supply 1pcs MOQ for testing and qualification.

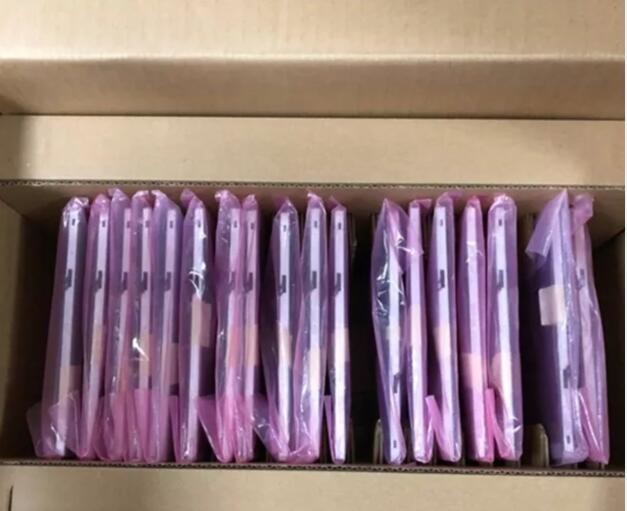

7.Q: What package do you have?
A: Different kinds of package for options: Wooden case, Honey comb case, and Flight case.
